How to Install 2026 French Drains for Muddy Yards

Why Your Yard Is a Swamp: The Forensic Autopsy of Failed Drainage

A muddy yard is usually the result of high clay content, poor subgrade compaction, or inadequate topographical relief. By installing a 2026-spec French drain, you bypass these issues using hydrostatic pressure management and subsurface water diversion to maintain a dry, usable landscape year-round. I recently got called out to tear up a $30,000 patio that was sinking because the previous contractor ignored the basic physics of water. The pavers were literally floating on a soup of saturated silt because they used cheap corrugated pipe that had crushed under 150 pounds of foot traffic and furniture. When we excavated, the smell of anaerobic soil – that rotten egg scent – was overpowering. It was a total failure of engineering. If you do not fix the soil grading and the subsurface water path first, every dollar you spend on stone or sod is just expensive compost. Water is patient. It will find the path of least resistance. If you do not provide that path, it will create its own through your foundation or under your hardscaping. This guide is about building a system that lasts thirty years, not thirty days.

“A retaining wall doesn’t fail because of the stone; it fails because of the water trapped behind it.” – Hardscape Engineering Axiom

The Science of Soil Saturation and Hydrostatic Pressure

To solve a drainage problem, you must understand Darcy’s Law, which describes the flow of a fluid through a porous medium. In many residential yards, the hydraulic conductivity of the soil is near zero. Heavy clay particles are flat and plate-like, stacking together to create a waterproof barrier. When rain hits, it cannot penetrate. It sits. This creates hydrostatic pressure that pushes against your home’s footings. A French drain acts as a relief valve. We are creating a high-permeability vein in the earth. This requires a specific void ratio in your backfill. You cannot just throw dirt back into the trench. You need #57 washed stone, which provides roughly 40% void space, allowing water to move freely toward the pipe. The pipe itself must be rigid PVC, specifically SDR-35 or Schedule 40, to withstand the weight of the overburden and the freeze-thaw cycles that shift the ground in northern climates.

How much slope do I need for a French drain?

A professional French drain requires a minimum 1 percent slope, which equates to a 1-inch drop for every 8 feet of horizontal run. Without this precise gravitational gradient, water will stagnate in the pipe, leading to sediment buildup and system failure. Use a transit level for accuracy. String levels are for amateurs. I have seen systems fail because a contractor ‘eyeballed’ the pitch and ended up with a belly in the line. That belly collects silt. Silt becomes mud. Mud becomes a blockage. You need a clean, consistent downhill run to a daylight exit or a dedicated dry well. If your yard is dead flat, you are looking at a deep excavation or a mechanical pump system. There are no shortcuts in physics.

What is the best pipe for a French drain?

The gold standard for 2026 drainage installs is 4-inch perforated rigid PVC pipe with the holes facing downward. Facing the holes down allows the water table to rise into the pipe from below, which is the most efficient way to evacuate groundwater. Many hacks put the holes facing up, which only catches surface water and allows the pipe to fill with silt. Rigid PVC is superior to corrugated because the smooth interior walls prevent debris from snagging, and the pipe will not crush under the weight of a lawnmower or a shifting soil load. It is also easier to snake out if a root ever finds its way into the system. Don’t buy the thin stuff from the big-box aisle. Go to a landscape supply yard and get the heavy-duty SDR-35. It costs more. It is worth more.

“Effective drainage systems must move water at a velocity sufficient to prevent sediment deposition while maintaining structural integrity of the soil.” – USDA Natural Resources Conservation Service

The Step-by-Step 2026 Installation Protocol

• Excavation: Dig a trench 12 inches wide and at least 18 inches deep. The depth must be below the frost line in some regions or at least deep enough to intercept the water table.
• The Fabric Envelope: Line the trench with a non-woven geotextile fabric. This is the ‘burrito wrap.’ It allows water in but keeps the ‘fines’ (silt and clay) out. If you skip this, your stone will be clogged with mud in three years.
• Bedding: Lay 2 inches of #57 washed stone at the bottom of the fabric-lined trench to create a level base for the pipe.

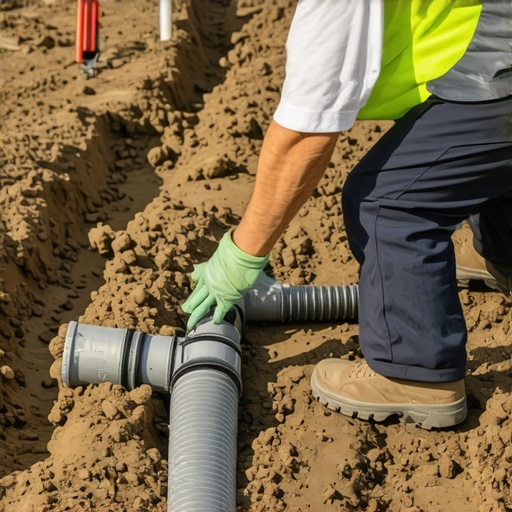

• Pipe Placement: Lay the rigid PVC with the perforations facing down. Connect joints with solvent weld or heavy-duty snap-fit couplings.
• Stone Backfill: Fill the trench with stone to within 4 inches of the surface. This stone column is the ‘interceptor’ that grabs the water.
• The Wrap: Fold the excess geotextile fabric over the top of the stone. This creates a sealed filter chamber.
• Final Cover: Top with 4 inches of topsoil or decorative river rock. If using soil, ensure it is a high-sand mix to allow infiltration.

Maintenance and Long-Term Performance

A French drain is not ‘set it and forget it.’ You need to monitor the discharge point. If you use a pop-up emitter, make sure it is not clogged with grass clippings. Every spring, run a garden hose into the cleanout – you should have installed a cleanout – to ensure the flow is unobstructed. If you see white crusting on the exit, that is mineral buildup. It is normal but needs occasional flushing. If you have aggressive trees like Silver Maples or Willows nearby, their roots will hunt for this water. This is why we use rigid pipe. You can’t run a mechanical root cutter through corrugated pipe without destroying it. If you do this right, your yard will be firm enough to walk on ten minutes after a rainstorm. If you do it wrong, you just built an underground swamp. Choose wisely.
