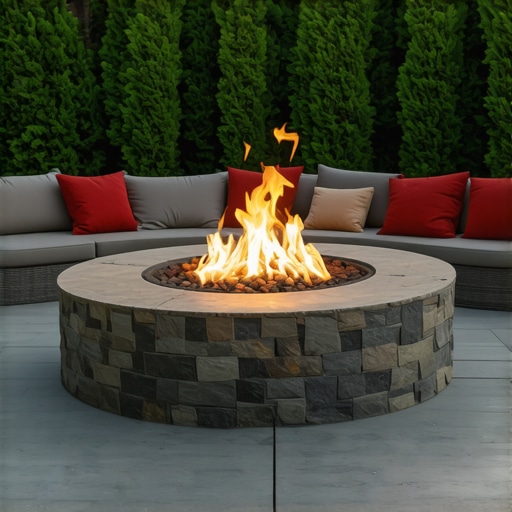

Build a $400 2026 Flagstone Fire Pit [Pro Look]

The Hardscape Autopsy: Why Cheap Foundations Kill Your Fire Pit

I recently got called out to tear up a $30,000 patio that was sinking because the previous contractor used screenings as a base instead of modified stone. The water sat in that screenings layer, turned to ice during the first freeze, and expanded with 30,000 PSI of force, lifting the flagstone until the joints shattered. It was a $30,000 lesson in why engineering matters more than aesthetics. To build a pro-look flagstone fire pit on a $400 budget, you must ignore the fluff and focus on soil compaction, base material density, and hydrostatic pressure management. Most DIY kits fail because they sit on top of the turf. Grass is a living, rotting organic layer. It will compress. Your fire pit will tilt. It is inevitable unless you dig.

“A retaining wall doesn’t fail because of the stone; it fails because of the water trapped behind it.” – Hardscape Engineering Axiom

Site Selection and Sub-Base Preparation

The first step to a permanent flagstone fire pit is selecting a site with proper drainage and excavating 8 inches deep to reach the mineral subsoil. You must remove all organic matter and turf grass to prevent future settling or heaving caused by decomposition and moisture retention in the root zone. Stop thinking about the fire. Think about the dirt. You need to clear a radius at least 12 inches wider than the fire pit itself. This extra space allows for a structural shoulder that keeps the outer stones from kicking out over time. If you live in a region with heavy clay, your drainage is already compromised. You are building a bathtub. You must address that before the first stone is laid. Don’t skip the utility check. Call 811. One nicked gas line turns a $400 project into a $10,000 disaster.

How deep should a fire pit foundation be?

For a professional installation, you need an 8-inch total depth. This allows for 6 inches of compacted 2A modified gravel and 2 inches of stone or bedding sand. In areas with high freeze-thaw cycles, 10 inches is safer to combat frost heave.

Can I build a fire pit on top of grass?

No. Grass and topsoil are compressible organic materials. As the grass dies and rots, the weight of the flagstone will cause the structure to sink unevenly. You must excavate down to stable, inorganic subsoil to ensure a level, long-term build.

The $400 Material Breakdown

Achieving a high-end look on a budget requires sourcing raw materials rather than pre-packaged kits. A steel fire ring provides the structural integrity and heat protection for the stone, while irregular flagstone provides the rustic, professional aesthetic. Prices vary by region, but sourcing from a local stone yard rather than a big-box retailer will save you roughly 40 percent on the rock. Look for sedimentary stones like sandstone or limestone, but ensure they are dense. Thin, flaky slate will shatter under high heat. Spend the extra $50 on a heavy-gauge steel liner. It protects your stone from thermal shock. Without it, the moisture inside the rocks can turn to steam and cause the stone to explode.

Excavation and Drainage Engineering

Once you have marked your circle, dig out 8 inches of soil. Use a square shovel to keep the walls vertical. The floor of your pit must be level. Use a 4-foot level and a straight board to verify this. If the floor is slanted, your gravel base will eventually migrate toward the low point. Lay down your geotextile fabric. This fabric is critical because it prevents the crushed stone base from sinking into the soft mud over time. It keeps your structural layers separate from the soil. Use 2A modified gravel (also called 3/4-inch minus). This material contains both large angular stones and fine stone dust. When compacted, the dust fills the voids between the stones, creating a surface as hard as concrete.

• Excavate the area to a diameter 2 feet wider than the fire ring.
• Line the hole with non-woven geotextile fabric to prevent soil migration.
• Fill with 3 inches of modified gravel and compact using a hand tamper.
• Add another 3 inches of gravel and compact again until the tamper bounces.
• Verify the base is level within 1/8th of an inch across the entire span.

“Standard Proctor density tests show that non-compacted soil will settle up to 20 percent of its volume over three years, destroying hardscape integrity.” – AASHTO T-99 Engineering Manual

Setting the Flagstone and Heat Management

Place your steel fire ring in the center of the compacted gravel. This ring is your anchor. Start laying your largest flagstones around the ring. You want a tight joint pattern. If the gaps are wider than 2 inches, it looks like an amateur job. Use a rubber mallet to set each stone into the gravel. Do not use a metal hammer; it will scar the stone or cause micro-fissures that lead to cracking. As you build the wall upward, ensure each layer is level. If you are using irregular stone, you will need to play stone Tetris. Flip them, rotate them, and find the natural fit. Avoid long vertical joints. Cross your joints like a bricklayer does. This creates structural interlock. A wall with stacked vertical joints is weak and will collapse under the weight of a person sitting on the edge.

The Finishing Touches: Jointing and Airflow

For the joints, use polymeric sand or stone dust. Polymeric sand contains binders that harden when wet, preventing weeds from growing in the gaps. However, do not fill the bottom of the pit with polymeric sand. Use 1 inch of lava rock or clean gravel inside the fire ring. This allows rainwater to drain through the bottom of the pit into the gravel base below. If you seal the bottom, the pit will hold water and become a mosquito breeding ground. Leave two small gaps in the bottom layer of your stone wall. These act as air intake vents. Fire needs oxygen. Without vents, the fire will smoke excessively and struggle to stay lit. These vents are the hallmark of a pro-level hardscape build. It will work better.

Year-One Maintenance and Settling

Your fire pit will move. Even with a perfect base, the earth breathes. In the first year, you may see minor settling. This is normal. If a stone becomes loose, remove it, add a small amount of sand, and reset it. Keep the steel ring clean of ash. Ash is acidic and, when mixed with rain, creates a lye-like substance that can eat through thin steel and stain your flagstone. Clean the pit out twice a season. Do not throw water on a hot fire to extinguish it. The thermal shock will shatter your flagstone instantly. Let the fire die down naturally or use sand. This build is about longevity. If you followed the compaction rules, this pit will be there in 2036. Take care of the base, and the stone takes care of itself.”,”image”:{“imagePrompt”:”A professional cross-section diagram of a fire pit foundation showing 6 inches of compacted 2A modified gravel, a layer of geotextile fabric, a steel fire ring, and irregular flagstone walls on a mineral subsoil base.”,”imageTitle”:”Professional Fire Pit Foundation Engineering Diagram”,”imageAlt”:”Cross-section diagram of a pro-grade flagstone fire pit base and wall structure.”},”categoryId”:1,”postTime”:”2024-05-20T10:00:00Z”}
