The Best Way to Install Edging for a Gravel Driveway

Why Driveway Edging Is a Structural Necessity Not an Aesthetic Choice

Proper driveway edging serves as a containment system that prevents the lateral migration of gravel and sub-base materials under the extreme weight of vehicular traffic. By creating a rigid perimeter, you maintain the integrity of the driveway shoulders and prevent the aggregate from thinning out or mixing with the surrounding soil, which inevitably leads to sub-grade failure. It is not about looks. It is about physics. I recently got called out to tear up a $30,000 driveway project because the previous contractor used flimsy plastic landscape edging held down by 6-inch spikes in soft topsoil. Within two winters, the frost heave had pushed those spikes out like toothpicks, and the gravel was migrating six feet into the homeowner’s lawn. We had to excavate the entire perimeter, re-establish the sub-grade, and install heavy-duty steel to save the investment. This is what happens when you treat hardscaping like gardening. Don’t make that mistake.

“A retaining wall or containment edge doesn’t fail because of the stone; it fails because of the water trapped behind it or the lack of a compacted foundation.” – Hardscape Engineering Axiom

The Physics of Lateral Displacement in Aggregate Driveways

When a 5,000-pound SUV rolls over a gravel surface, it exerts downward and outward pressure. Without a vertical barrier, the stones move sideways. This is called lateral displacement. Over time, this thins the center of the driveway, creating ruts. You aren’t just losing gravel; you are losing the structural profile of the drive. Most DIYers think a few bricks will hold it. They won’t. You need a material that can withstand the PSI (pounds per square inch) of a turning tire without bowing. If the edge moves even half an inch, the compaction of your gravel is compromised. It will fail. Stop thinking about it as a border and start thinking about it as a structural abutment.

Selecting the Right Materials: Steel Granite or Concrete?

Choosing the correct edging material requires balancing compressive strength, resistance to frost heave, and chemical durability against your specific site conditions and budget. For high-traffic gravel drives, heavy-gauge steel or Belgium block set in concrete are the only two options that provide the necessary counter-force to prevent edge spread over a ten-year horizon. Aluminum is for flower beds. Plastic is for trash cans. If you want a driveway that lasts, you use materials that can handle a vibratory plate compactor hitting them at 4,000 VPM (vibrations per minute). Anything less is just temporary decoration.

How deep should driveway edging be?

For a standard gravel driveway, your edging must extend at least 2 inches below the bottom of your compacted sub-base to prevent undermining. This typically means an excavation depth of 8 to 12 inches depending on whether you are using a 4-inch or 6-inch base of #3 or #4 crushed stone. If the edging sits only in the surface gravel, it will float and eventually tip. It must be anchored into the sub-grade. This prevents the ‘hinge effect’ where the weight of a vehicle causes the edging to rotate outward.

What is the best material for gravel driveway edging?

Structural steel (specifically 3/16 inch or 1/4 inch thickness) is the industry standard for a clean, low-profile look that offers maximum resistance to lateral force. If you prefer a masonry aesthetic, Belgium block set on a 4-inch concrete haunch is the most durable choice. Both materials resist the freeze-thaw cycles that characterize northern climates. Avoid wood in high-moisture areas. It will rot. Avoid thin aluminum; it will bend the first time a truck clip the edge.

The Step-By-Step Engineered Installation Process

Installation begins with the layout and excavation phase where you must remove all organic matter and reach a stable mineral soil layer. Success depends on sub-grade compaction; if you place your edging on uncompacted dirt, the first heavy rain will turn that dirt into mud, and your edging will sink or tilt regardless of how many spikes you use. You need a trench. You need a plate compactor. Do not skip the compaction. It is the most important part of the job.

• Excavation: Dig a trench 2 inches wider than your edging and deep enough to accommodate a 2-inch leveling pad of modified gravel.
• Sub-grade Prep: Run a plate compactor over the bottom of the trench until you reach 95% Proctor density.
• Setting the Line: Use a string line and transit level. Guessing with your eyes is for amateurs.

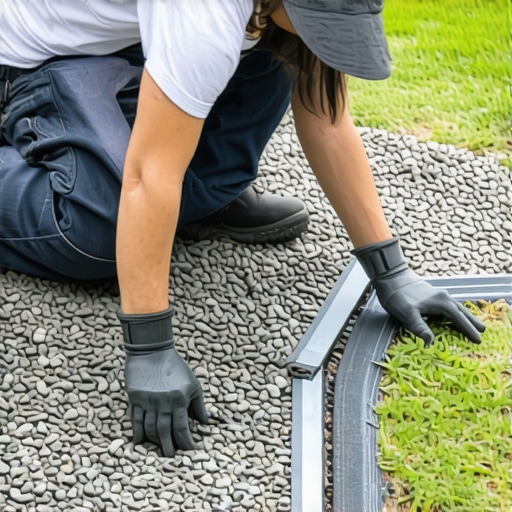

• Installation: Secure steel edging with 18-inch tapered stakes every 3 feet. For stone, set in a wet-mix concrete haunch.
• Backfilling: Tamp the soil on the outside of the edging and the gravel on the inside simultaneously to equalize pressure.
• Final Compaction: Run the compactor along the inside edge of the drive to lock the aggregate against the new border.

“Soil pH and moisture content can drastically accelerate the corrosion of metal edging; always specify galvanized or weathered steel for high-acidity environments.” – Penn State Agricultural Extension

The Critical Importance of Drainage and Hydrostatic Pressure

Water is the enemy of any hardscape. If your edging creates a bathtub effect where water is trapped in the driveway gravel, the sub-grade will soften and the drive will fail. You must ensure the top of the edging is slightly lower than the surrounding grade or install weep holes and French drains if you are using a solid masonry curb. Hydrostatic pressure can exert thousands of pounds of force. It will move your edging. Every 20 feet, I check for natural drainage swales. If the water has nowhere to go, your driveway becomes a pond. A pond with a very expensive border. That is not engineering; that is a mistake.

Maintenance and the Year One Settling Period

After installation, the first four seasons are the most telling. You will see minor settling of the backfill. This is normal, but you must address it immediately by adding more soil or gravel to maintain the pressure equilibrium. If you see a gap forming between the soil and the edging, fill it. If you don’t, water will channel down that gap and erode your foundation. Check your stakes. If a stake has heaved, it means your drainage is poor and water is freezing under the anchor point. Fix the water, don’t just hammer the stake back in. It will just pop out again. Hardscaping is a battle against gravity and erosion. You have to stay vigilant.
